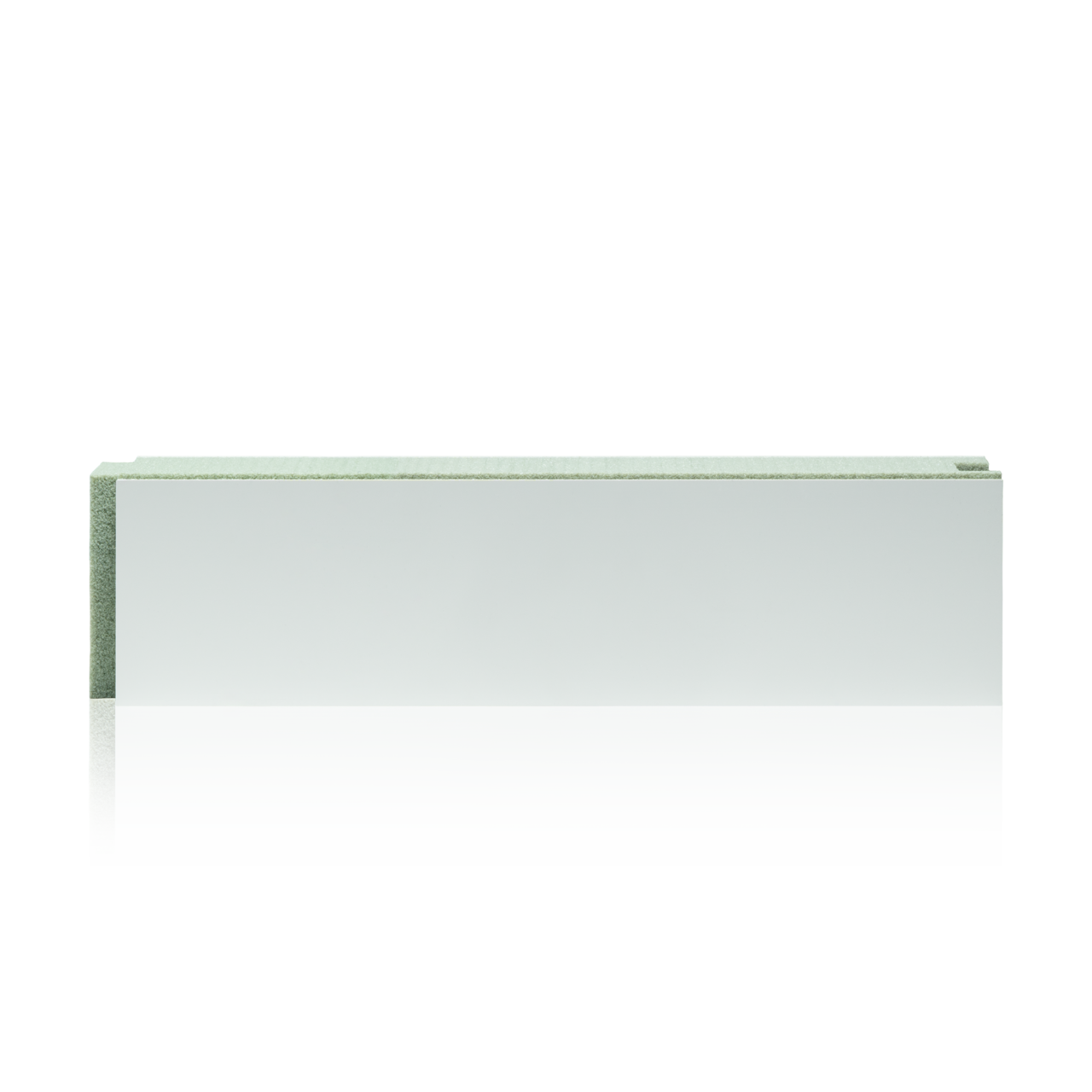

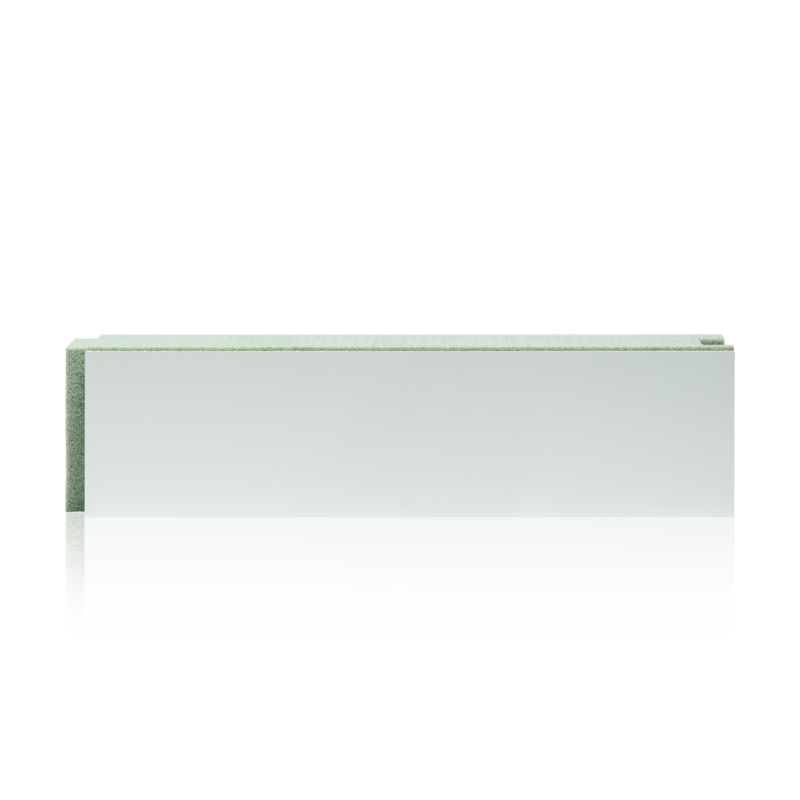

Plinth Thermal Insulation Profile PVC/TK
The blaugelb Plinth Thermal Insulation Profile PVC/TK made of a TK core (thermoplastic resin) and a two-sided 2 mm PVC top layer (polyvinyl chloride) offers the best possible heat and moisture protection on balcony doors made of plastic, aluminium, wood and wood/aluminium. The blaugelb Plinth Thermal Insulation Profile PVC/TK is sturdy, durable and is exceptionally quick and easy to fit. The blaugelb Plinth Thermal Insulation Profile PVC/TK enables thermal separation and reduces potential thermal bridges compared to conventional plastic profiles with steel reinforcement. It is dimensionally stable, 100 % free of HCFCs, HFCs and HBCDs.
The blaugelb Plinth Thermal Insulation Profile PVC/TK was specially developed for fitting as a floor recess profile under frames for floor-level elements. The profile-specific Plinth Thermal Insulation Profiles PVC/TK can be produced at heights of 30 to 300 mm. By virtue of the innovative dovetail joint, the blaugelb Plinth Thermal Insulation Profiles PVC/TK can be positively interlocked to create any desired length. The dovetail joint optimises waste, in some cases avoiding waste altogether.
The contoured mount guarantees quick and easy installation of the profile with the blaugelb Frame Screw Fix FK-T30 and precise positioning thanks to the contour cutting. This prevents the formation of a hollow chamber between the sill connection profile and the frame, and airtightness is achieved thanks to the process-safe sealing.
- Effective insulation offering high potential savings
- Permanently eliminates energy weak points on components installed on floor slabs and enhances indoor comfort
- Prevents damage caused by moisture and mould
- High load transfer
- Low weight
- Force-locking screwing in the frame structure
- UV-resistant PVC top layer
| Surface and top layer: | On both sides 2 mm PVC white |
| Material: | Thermoplastic resin (TK) |
Compressive load bearing capacity at 60 x 40 mm: (blaugelb Spacer Block) | 4,440 N |
Compressive load bearing capacity at 170 x 53 mm: (blaugelb Shim Block HST) | 16,669 N |
Compressive load bearing capacity at 210 x 53 mm: (blaugelb Shim Block HST) | 20,628 N |
Fire behaviour: DIN 4102-1:1998-05 | B2 |
Fire behaviour: DIN EN 13501-1:2019-05 | CLASS E |
Thermal transmittance value U-value: 55 / 60 / 66 / 74 mm | 0.696 / 0.641 / 0.586 / 0.526 W/m²K |
| Dimensional stability: | Very high, including outdoor weathering |
Screw withdrawal values: blaugelb Frame Screw Fix FK-T30 7.5 x L mm 60 mm screw-in depth | X-axis: FRK 4.06 kN Y-axis: FRK 3.67 kN |
UV-resistance of the PVC top layer: DIN EN 513 (irradiation energy 12 GJ/m² or outdoor weathering over 5 years) | Fastness to weathering and light No colour variations occur that exceed grey scale grade 4 according to ISO 105-A03 |
| Waste code: | AVV 070213 |
