blaugelb

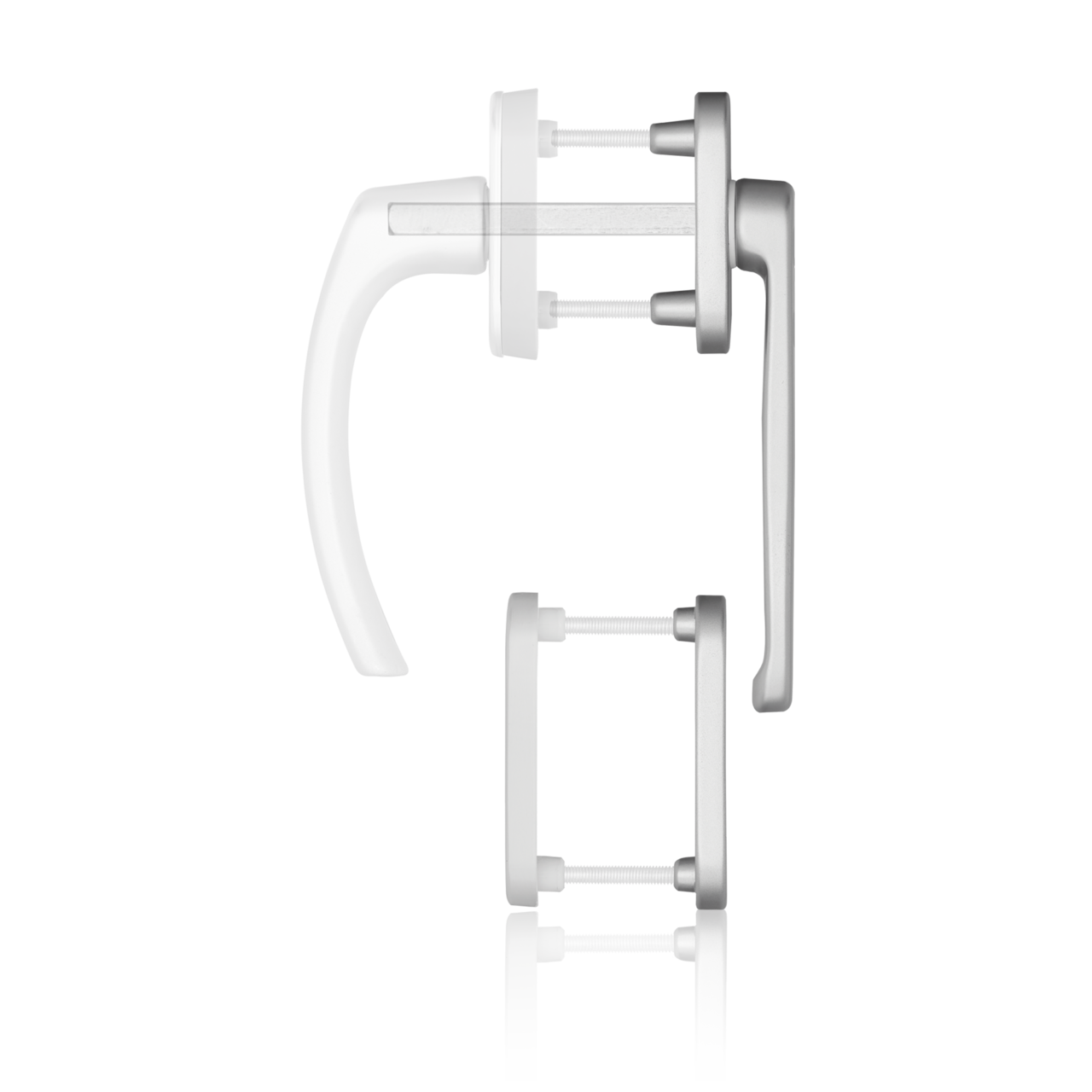

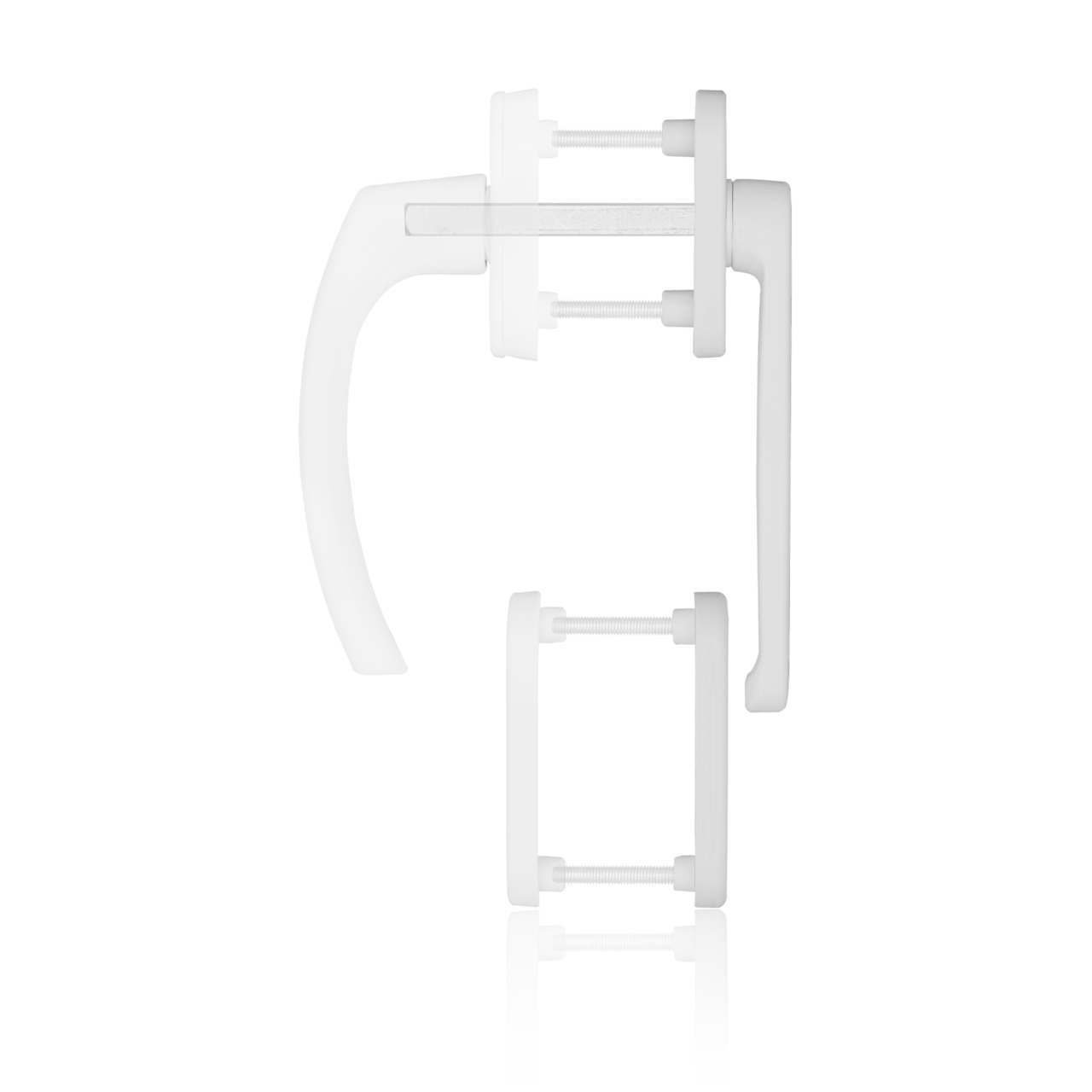

Roller Shutter Balcony Door Handle half-set FGS 1758 ½ NGT outside
The blaugelb Balcony Door Handle half-set FGS 1758 ½ NGT outside made from aluminium perfectly complements the blaugelb Window Handle FGS 1758 on the balcony door. It is notable for its elegance and straight lines, and looks good on every balcony door. The low lever is specially intended for balcony doors with roller shutter. The surface finish imparts the window handle with its colour and rounds off the high-quality overall impression. The Balcony Door Handle half-set FGS 1758 ½ NGT outside is supplied without fastening; this depends on the thickness of the individual door and is available separately.
To match the Window Handle series 1758, blaugelb sets (e.g. Lever Handle set DGT35 PZ92 white, Item No. 0423941) are available in the same handle design line, in a choice of colours and versions.
- High-quality, corrosion-resistant aluminium
- With powder-coated or anodised surface finish
- Extra-flat lever as solution with roller shutters on the balcony door
- Attractive and elegant on the balcony door
- Concealed screws
| Material: | Aluminium |
| Surface: | Coated / anodised |
| Rosette material: | Aluminium |
| Lock-in position: | Without lock-in position |
| Square pin: | Prepared for 7 mm |
| Cam diameter: | 10 mm |
| Rosette dimensions (handle): | 27 x 68 x 8 mm (oval) |
| PZ rosette dimensions: | 27 x 80 x 8 mm (oval) |
| Fastening: | Not included |
| Packing unit: | 2 pieces |
The information provided in this document corresponds to the information and technical details available to the best of our knowledge. However, this does not constitute a guarantee pursuant to section 443 of the German Civil Code (BGB). Our processing instructions are to be considered only as general guidelines and may differ in the individual case due to the range of possible uses and applications. They do therefore not automatically exempt the user from carrying out their own tests. We reserve the right to make technical modifications and enhancements at any time.
| Product name | PU | Item no. |
|---|---|---|
blaugelb Window Handle FGS 1758 ½ NGT outside RAL 9016 (powder coated white) | 2 pieces | 0431706 |
blaugelb Window Handle FGS 1758 ½ NGT outside F1 (anodised silver) | 2 pieces | 0431708 |
blaugelb Window Handle FGS 1758 ½ NGT outside F9 (anodised steel-colour) | 2 pieces | 0431709 |
blaugelb FGS 1758 Fastening set NGT TS 57-62 mm 1 pin 7x110 mm, 4 screws M5x70 mm | 1 piece | 0431723 |
blaugelb FGS 1758 Fastening set NGT TS 62-67 mm 1 pin 7x115 mm, 4 screws M5x75 mm | 1 piece | 0431724 |
blaugelb FGS 1758 Fastening set NGT TS 67-72 mm 1 pin 7x120 mm, 4 screws M5x80 mm | 1 piece | 0431725 |
blaugelb FGS 1758 Fastening set NGT TS 72-77 mm 1 pin 7x125 mm, 4 screws M5x85 mm | 1 piece | 0431726 |
blaugelb FGS 1758 Fastening set NGT TS 77-82 mm 1 pin 7x130 mm, 4 screws M5x90 mm | 1 piece | 0431727 |
blaugelb FGS 1758 Fastening set NGT TS 82-87 mm 1 pin 7x135 mm, 4 screws M5x95 mm | 1 piece | 0431728 |
blaugelb FGS 1758 Fastening set NGT TS 87-92 mm 1 pin 7x140 mm, 4 screws M5x100 mm | 1 piece | 0431729 |
