blaugelb

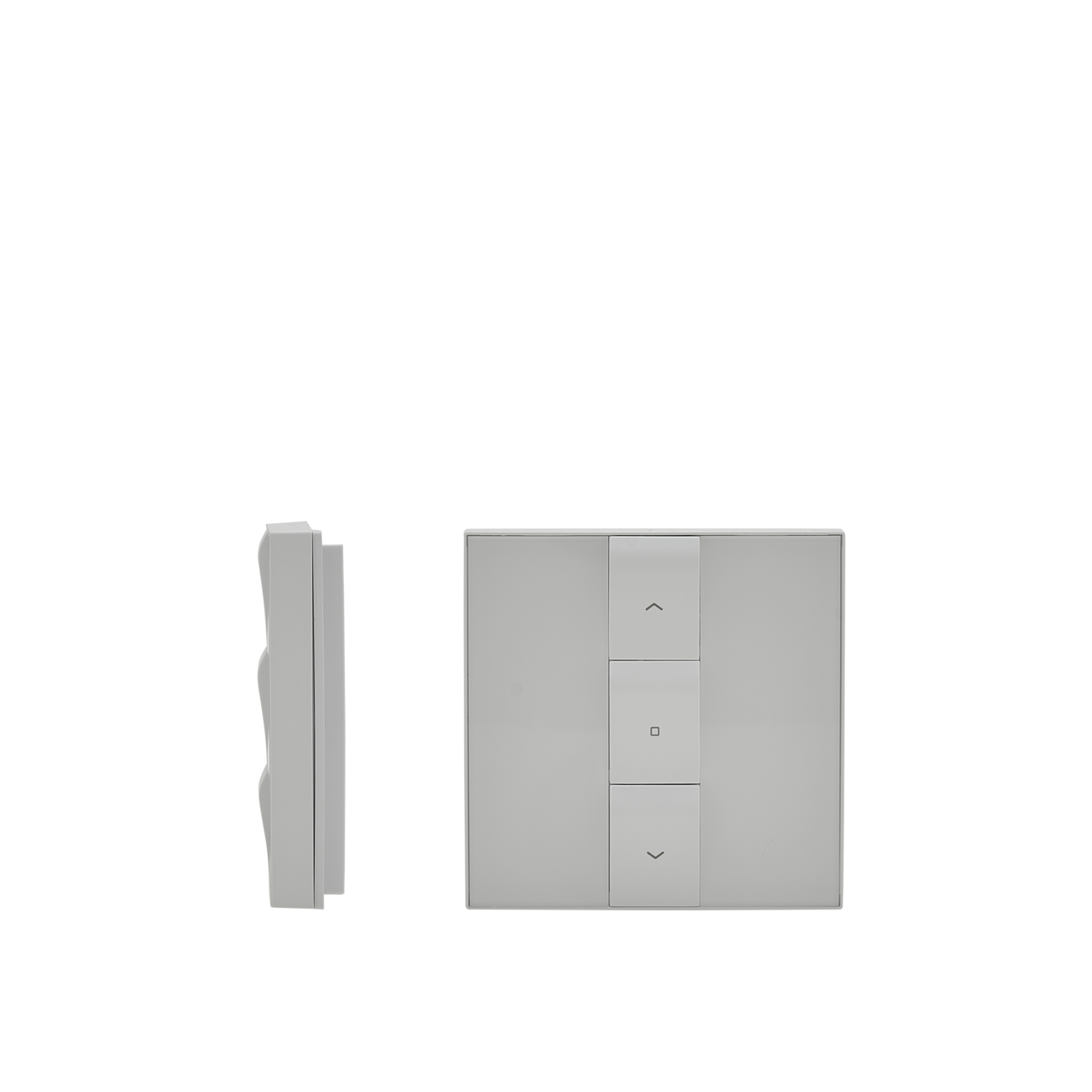

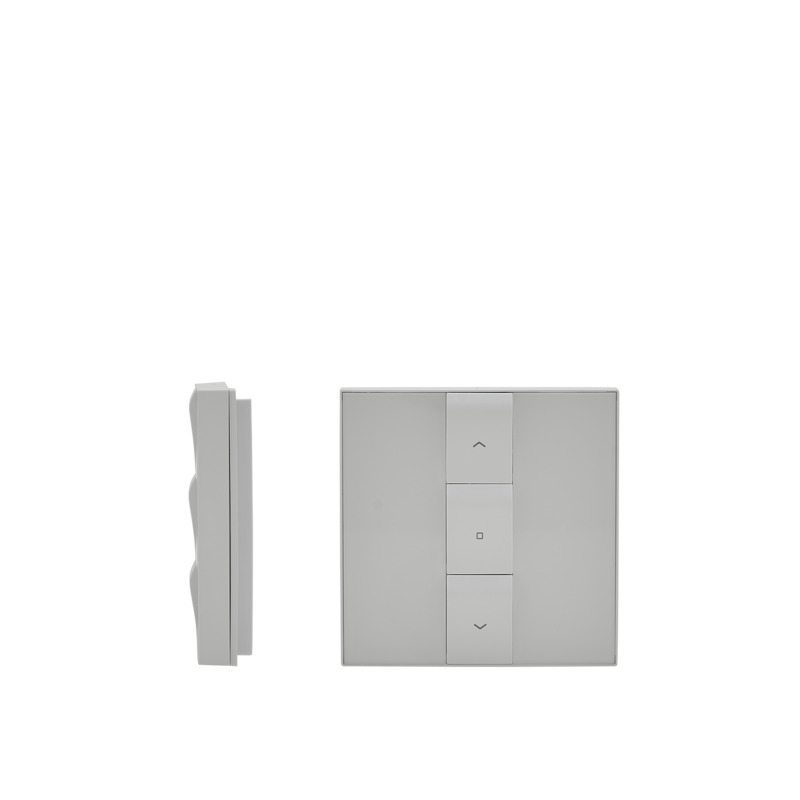

Radio Wall Mounted Transmitter
The blaugelb Radio Wall Mounted Transmitter is the elegant control centre for individual roller shutter motors. Here, the wireless transmitter is taught to the roller shutter motor and the frame of the transmitter is mounted on a wall without having to lay complex cables to the roller shutter motor. The actual blaugelb Radio Wall Mounted Transmitter is then held in the holder by a magnet. This has the advantage that the transmitter solution recreates the elegance and operating principle of a classic and permanently installed control element, but free placement of the operating module is possible if required, e.g. on a sideboard or table, and the module can then be returned to its place in the wall bracket after use.
The built-in 1-channel module can control a single wireless blaugelb Roller Shutter Motor or a single created group and is operated in manual mode. The respective operating function is indicated by discreet LEDs and occurs independent of a power source via a powerful and common CR2430 button cell battery.
The blaugelb Radio Wall Mounted Transmitter comes with a two-year warranty.
- Elegant control centre on the wall or as a portable solution
- 1-channel transmitter module
- Simple and quick installation
- Increases the ease of controlling the roller shutter
- Durable and reliable
| Nominal voltage: | 3 VDC |
| Transmission frequency: | 433.92 MHz |
| Transmission power: | 10 mW |
| Number of channels: | 1 |
| Operating temperature: | -10 °C to +50 °C |
| Battery type: | CR2430 |
| Display: | LED |
| Fastening: | Wall bracket with screws (2 pcs. 3x16 mm) |
| Scope of supply: | Radio Wall Mounted Transmitter, wall bracket, CR2430 battery, screws |
| Dimensions: | 80 x 80 x 15 mm |
The information provided in this document corresponds to the information and technical details available to the best of our knowledge. However, this does not constitute a guarantee pursuant to section 443 of the German Civil Code (BGB). Our processing instructions are to be considered only as general guidelines and may differ in the individual case due to the range of possible uses and applications. They do therefore not automatically exempt the user from carrying out their own tests. We reserve the right to make technical modifications and enhancements at any time.
